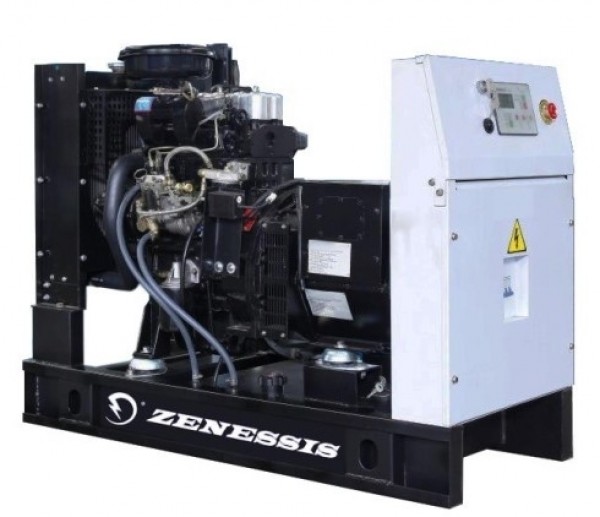

Generator/grup electrogen diesel ESE 55 TR

 2. ALTERNATOR

3. ComAp AMF 20 CONTROL SYSTEM

1. Left button
2. Right button
3. HORN RESET button
4. FAULT RESET button
5. UP button
6. PAGE button
7. DOWN  button
8. ENTER button
9. START button
10. STOP button
11. GCB button. Works in MAN and TEST
modes only
12. MCB button. Works in MAN and TEST
modes only
13. GENERATOR status indicator
14. GCB ON. Green LEDs are on if GCB is
closed and Gen-set is healthy.
15. LOAD
16. Graphic B/W display, 132x64 pixels
17. MAINS status indicator
18. MCB ON. Green LEDs are on if MCB is
closed and Mains is healthy

♦ Devices

Command and control panel mounted in a metal box with IP 54, mounted inside the generator, provided with a window for viewing from the outside, fitted with:
- ComAp AMF 20 command module
- Static battery charger
- Emergency stop button & circuit control fuses

♦ Parameters displayed:

Engine: engine speed; oil pressure; coolant temperature; running time; battery voltage; must perform engine
maintenance;
Generator: voltage (L – L, L – N); current (L1 – L2 – L3); frequency; grounding current; kW; Pf; kVAr;
kWh,kVAh, kVarh; phase sequence.
Main network: voltage (L – L, L – N); frequency.

♦ Circuit protection

Warnings: charging failure; battery under voltage; stop failure; low fuel level indicator – optional; overload
kW; negative phase sequence.
Pre-alarms: low oil pressure; engine high temperature; engine low temperature; under / over speed;
generator under / over frequency; generator under / overvoltage; ECU warning.
Stops: startup failure; emergency stop; low oil pressure; engine high temperature; low coolant level; under /
over speed; generator under / over frequency; generator under / overvoltage; oil pressure sensor open;
phase reversal.
Electric shock: grounding; overload kW; generator over current; negative phase sequence.

♦ Standards: Electrical safety / EMC
BS EN 60950; BS EN 60950 – 6 – 2 EMC; BS EN 61000 – 6 – 4 EMC.

 4. HOUSING

Made of powder-coated galvanized steel, soundproofed, waterproofed. It has modular design with interior access doors. The silencer is residential, mounted in the housing and ensures noise levels in accordance with Directive 2000/14/EC. Access doors are equipped with locks.

1. Emergency stop button
2. Window
3. Automation panel
4. Cable space
5. Automatic Switch (CB)
6. Exhaust air intake grills
7. Access doors (6 pieces)
8. Sled type chassis with lifting eyelets
9. Locks
10. Lift housing eyelets
11. Fuel
12. Spaces for transport by truck
13. Flue gases flap
