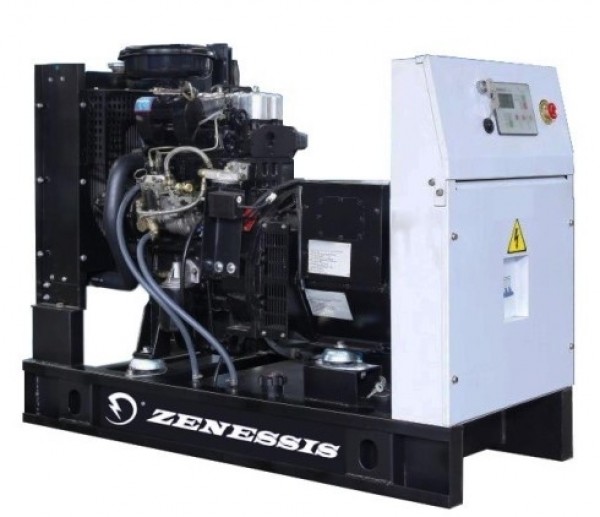

Generator / grup electrogen pe gaz natural ESE 8 TRG

Putere (kW) (ESP/PRP) 6,4 / 6
Turatie (rpm) 1500
Tensiune standard (V) 400 / 230
Putere (kVA) (ESP/PRP) 8 / 7.5
Factor putere 0,8
Amperaj (Amp) 10

Vizualizare de ansamblu rapida

GRUP ELECTROGEN DIESEL ESE 8 TRG disponibil acum. Generatoare de curent superioarea la tarife promotionale. Calitate germana!
Proiectoare

PROIECTARE

Executie

EXECUTIE

Testare

TESTARE

Livrare si instalare

LIVRARE & INSTALARE

Service

SERVICE

Detalii

1. ENGINE

ENGINE SPECIFICATIONS

Type

RICARDO

Model

2A1C1C10.6DW

No. of cylinders

2

Aspiration

NA

Cooling system

Liquid cooled

Power rating (kW)

10

Speed (rpm)

1500

Inner diameter & stroke (mm)

95 x 115

Compression factor

10 : 1

Governing

ECU



2. ALTERNATOR

ALTERNATOR SPECIFICATIONS

Model

AFA

Frequency (Hz)

50

Concept

Brushless, with a single bearing

Voltage (V)

400 / 230

Izolation class

H

Protection class

IP 21



3. ComAp AMF 20 CONTROL SYSTEM
  1. Left button
  2. Right button
  3. HORN RESET button
  4. FAULT RESET button
  5. UP button
  6. PAGE button
  7. DOWN button
  8. ENTER button
  9. START button
  10. STOP button
  11. GCB button. Works in MAN and TEST modes only
  12. MCB button. Works in MAN and TEST modes only
  13. GENERATOR status indicator
  14. GCB ON. Green LEDs are on if GCB is closed and Gen-set is healthy.
  15. LOAD
  16. Graphic B/W display, 132x64 pixels
  17. MAINS status indicator
  18. MCB ON. Green LEDs are on if MCB is closed and Mains is healthy

♦ Devices

Command and control panel mounted in a metal box with IP 54, mounted inside the generator, provided with a window for viewing from the outside, fitted with:

-       ComAp AMF 20 command module

-       Static battery charger

-       Emergency stop button & circuit control fuses

♦     Parameters displayed:

Engine: engine speed; oil pressure; coolant temperature; running time; battery voltage; must perform engine maintenance;

Generator: voltage (L - L, L - N); current (L1 - L2 - L3); frequency; grounding current; kW; Pf; kVAr; kWh,kVAh, kVarh; phase sequence.

Main network: voltage (L - L, L - N); frequency.

♦     Circuit protection

Warnings: charging failure; battery under voltage; stop failure; low fuel level indicator - optional; overload kW; negative phase sequence.

Pre-alarms: low oil pressure; engine high temperature; engine low temperature; under / over speed; generator under / over frequency; generator under / overvoltage; ECU warning.

Stops: startup failure; emergency stop; low oil pressure; engine high temperature; low coolant level; under / over speed; generator under / over frequency; generator under / overvoltage; oil pressure sensor open; phase reversal.

Electric shock: grounding; overload kW; generator over current; negative phase sequence.

♦ Standards: Electrical safety / EMC

BS EN 60950; BS EN 60950 - 6 - 2 EMC; BS EN 61000 - 6 - 4 EMC.

4 HOUSING - Made of powder-coated galvanized steel, soundproofed, waterproofed. It has modular design with interior access doors. The silencer is residential, mounted in the housing and ensures noise levels in accordance with Directive 2000/14/EC. Access doors are equipped with locks.

  1. Emergency stop button
  2. Window
  3. Automation panel
  4. Cable space
  5. Automatic Switch (CB)
  6. Exhaust air intake grills
  7. Access doors (6 pieces)
  8. Sled type chassis with lifting eyelets
  9. Locks
  10. Lift housing eyelets
  11. Fuel
  12. Spaces for transport by truck
  13. Flue gases flap

5.  STANDARD FEATURES



♦      Command & control panel with measurement &metal control devices, protection class IP54

♦      Static battery charger

♦      Dynamic battery charging alternator

♦      Controlled thermostat heater for coolant

♦      Oversized start battery

♦      Emergency stop button

♦      Chassis with fuel tank sized for8hrs of autonomy

♦      Vibration dampers

♦      Fuel level measuring device

♦      Electrical lines protected with tubing &gland

♦      Residential silencer

♦      Protection for hot components

♦      Magnetothermal and short-circuit protection

6. SIZE & WEIGHT

Closed generator sizes & weight

Sizes (length x width x height) (mm)

1.950 x 950 x 1.300

Weight (kg)

650

♦      Electrical panel anti-condensation heating system

♦      Fuel / oil heating system

♦      Coolant heating circulation pump

♦      Oil drain pump

♦      Remote monitoring & control system

♦      AAR load transfer panel, 3/4 poles, electromechanical or motorized

♦      CB protection switch,3/4 poles, electromechanical or motorized

♦      Bypass panel - ENDRESS patented invention- OSIM patent 0010/2012

♦      Remote radiator

♦      Trailer

♦      Increased tank for 12 or 24hrs autonomy

♦      External tank with transfer pump

♦      Command module synchronized with the netw or several generators

♦      Over-soundproofed housing, 65 dB at 7 m
